Walk-In Temperature (Humidity) Chamber COLONIA
Thanks for excellent unitzation design to minimize assembly period at installation site as well as quality improvement
With basic concept of “user-friendly products” and “products ha flexible meets users needs”, basic performance and function are improved while excellent safety features were realized.
Innovation

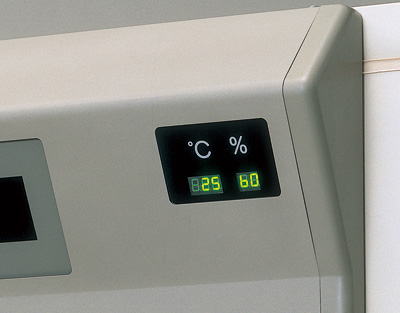

Easy-to-say chamber condition display panel
Easy-to-say chamber condition display panel
In addition to display of controller, a large display panel is located at upper side of door. Temperature and humidity visually confirmed easily.

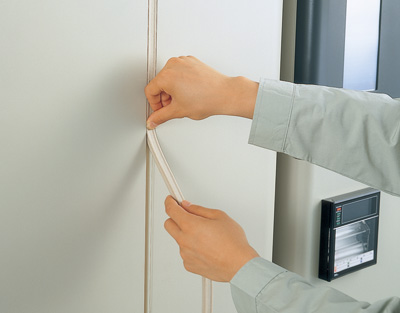

ETAC original packing for outside sealing
Although traditional silicon caulking is required for longer time for drying, special exterior packing developed keeps sufficient sealing effectiveness and assembly time minimization.
| Internal dimension (WxHxDmm) | |||
|---|---|---|---|
| Temp./humid. range | 1670×2200×1670 | 3470×2200×1670 | 3470×2200×2570 |
| −10°C〜＋80°C 15％RH.〜95％RH. |
CH111P CH111PA |
CH121P CH121PA |
CH131P |
| −35°C〜＋80°C （−30°C〜＋80°C） 15％RH.〜95％RH. |
CH311P CH311PA |
CH321P CH321PA |
CH331P |
| Internal dimension (WxHxDmm) | |||
|---|---|---|---|
| Temp./humid. range | 3670×2200×3270 | 4370×2200×3470 | 5270×2200×3470 |
| −10°C〜＋80°C 15％RH.〜95％RH. |
CH141P | CH151P | CH161P |
| −35°C〜＋80°C （−30°C〜＋80°C） 15％RH.〜95％RH. |
CH341P | CH351P | CH361P |
